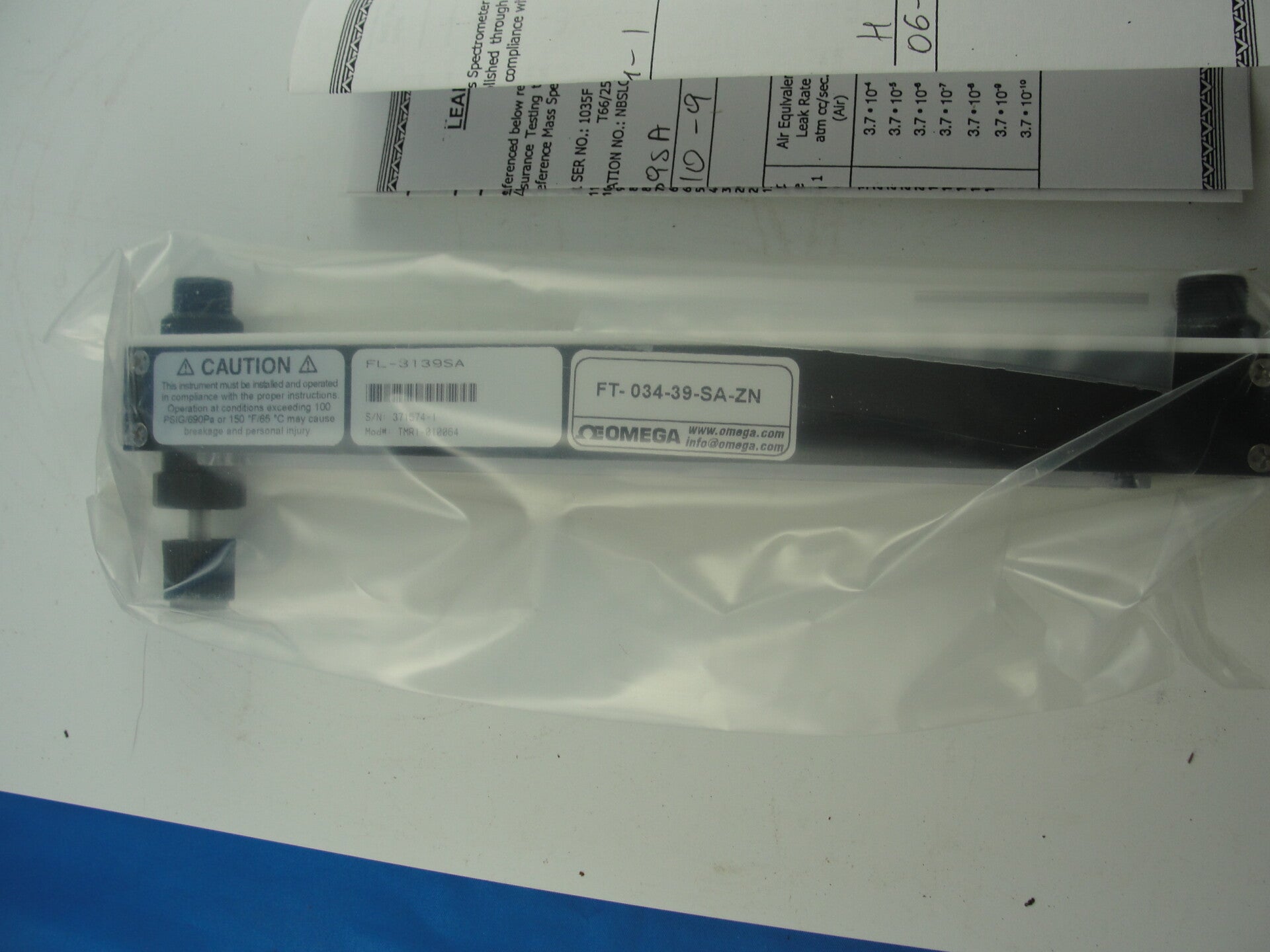

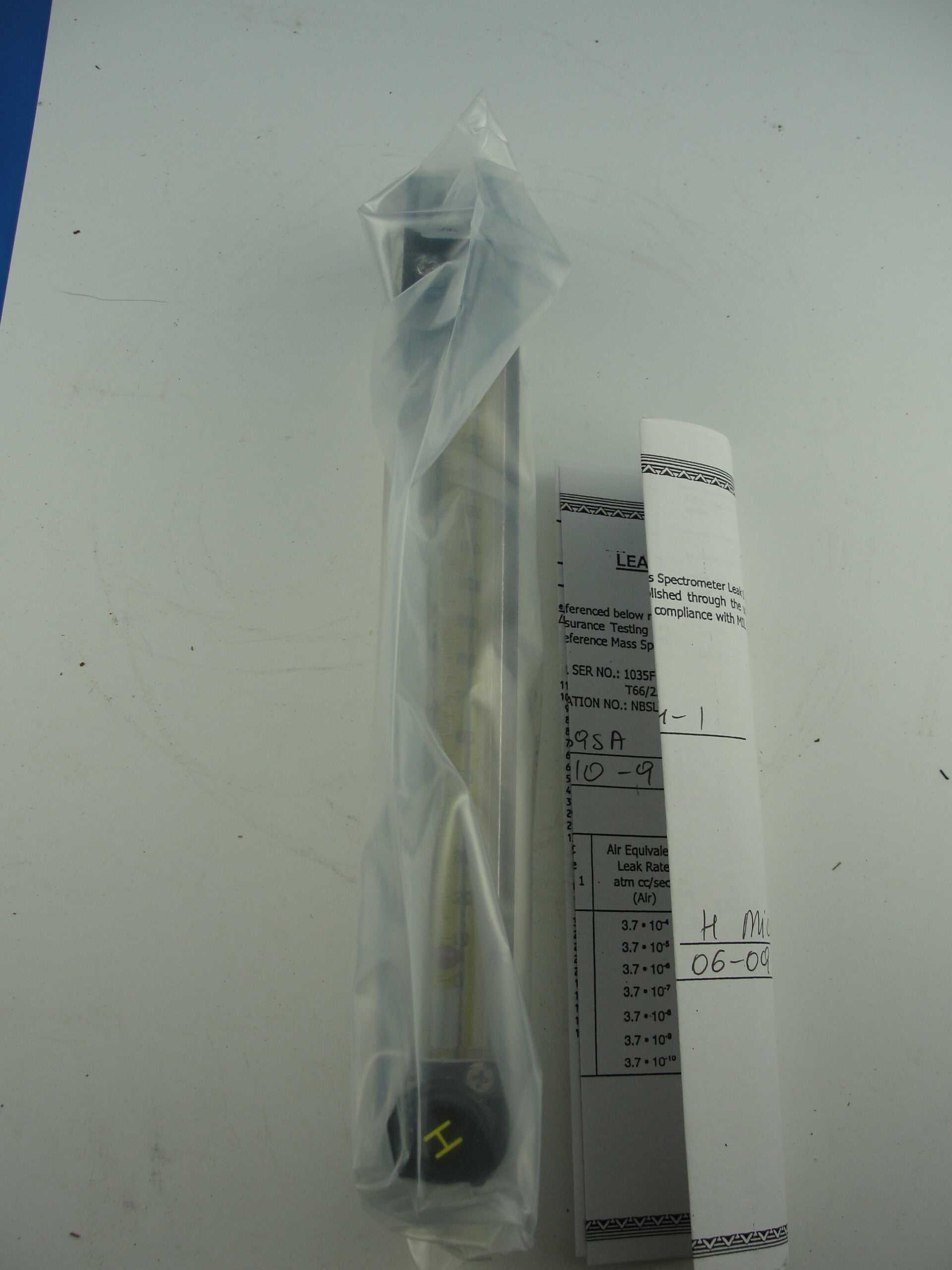

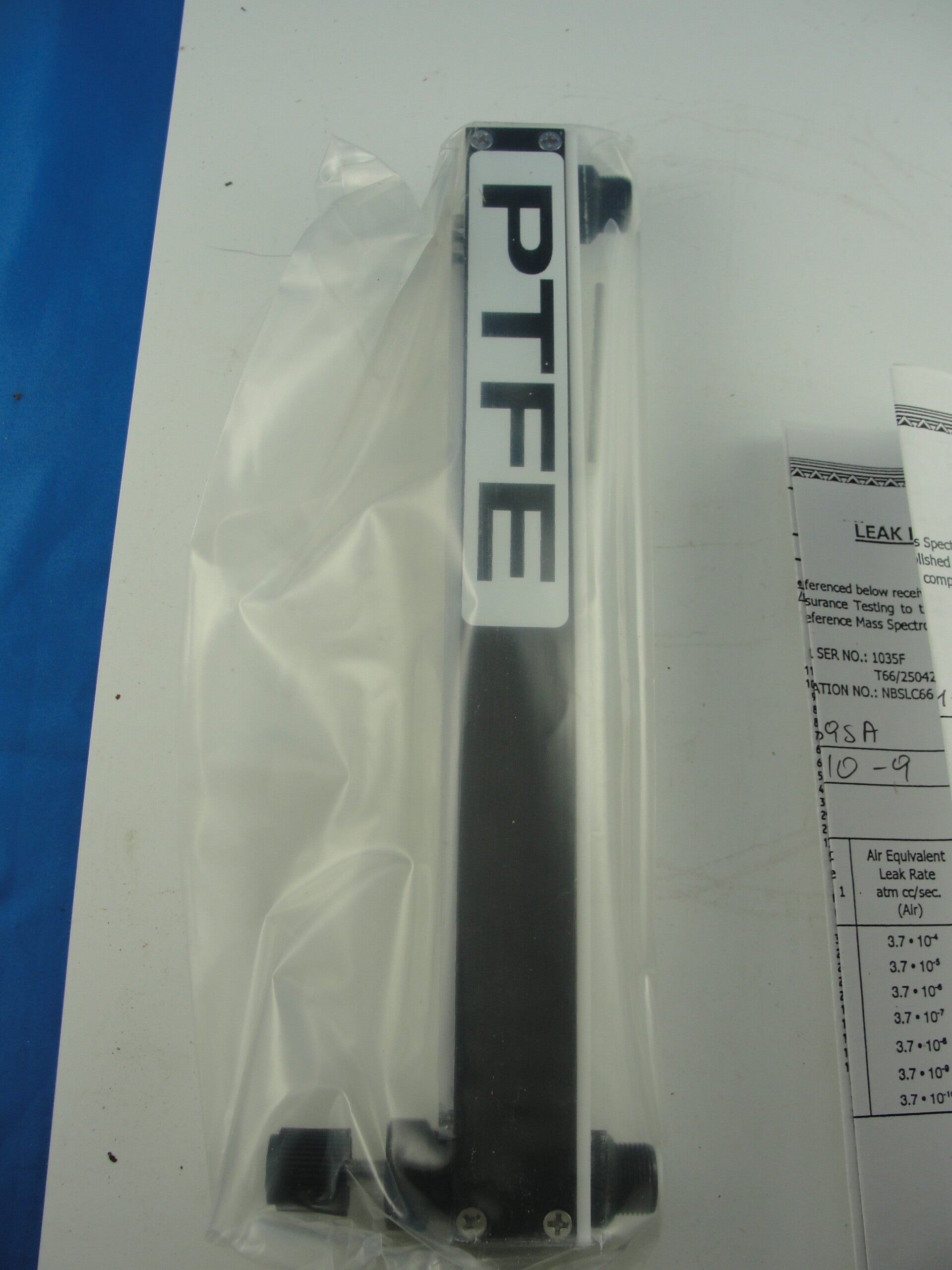

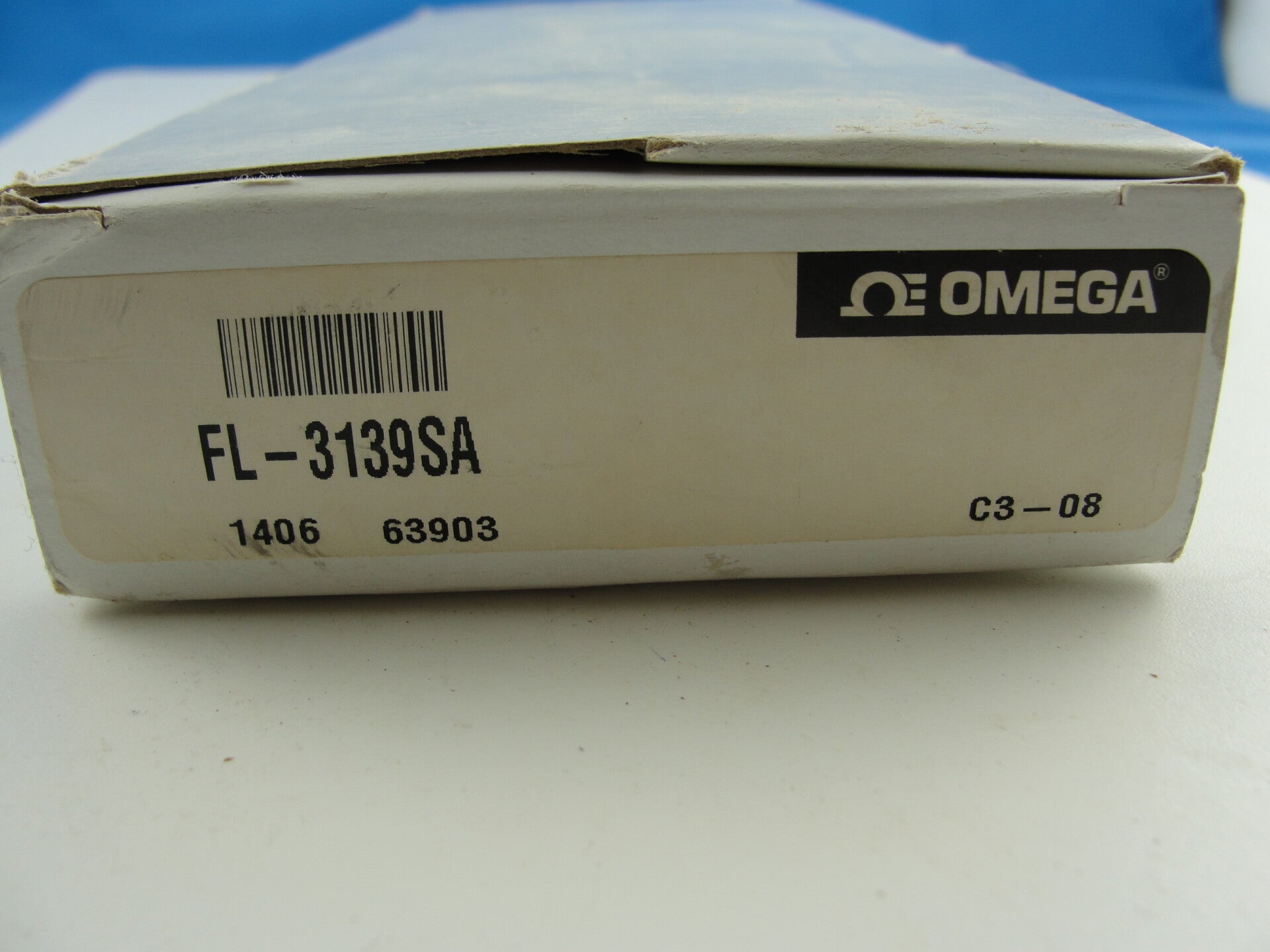

Omega FL-3139SA Variable Area Flow Meter
US$200.00
Brand: OMEGA Engineering
Air Flow, Max : 11887 cc/min
Water Flow, Max: 315 cc/min
Air/Water Flow, Min: 10% of max.
Media Compatibility: Air, Water
Accuracy: ±2% full scale
Repeatability: ±0.25% FS
Maximum Pressure: 6.7 bar (100 psig)
Maximum Temperature: 66°C (150°F)
Connections: 1/8 FNPT
Valve Type: PTFE needle with PEEK
Mounting: Panel mount or optional tripod base

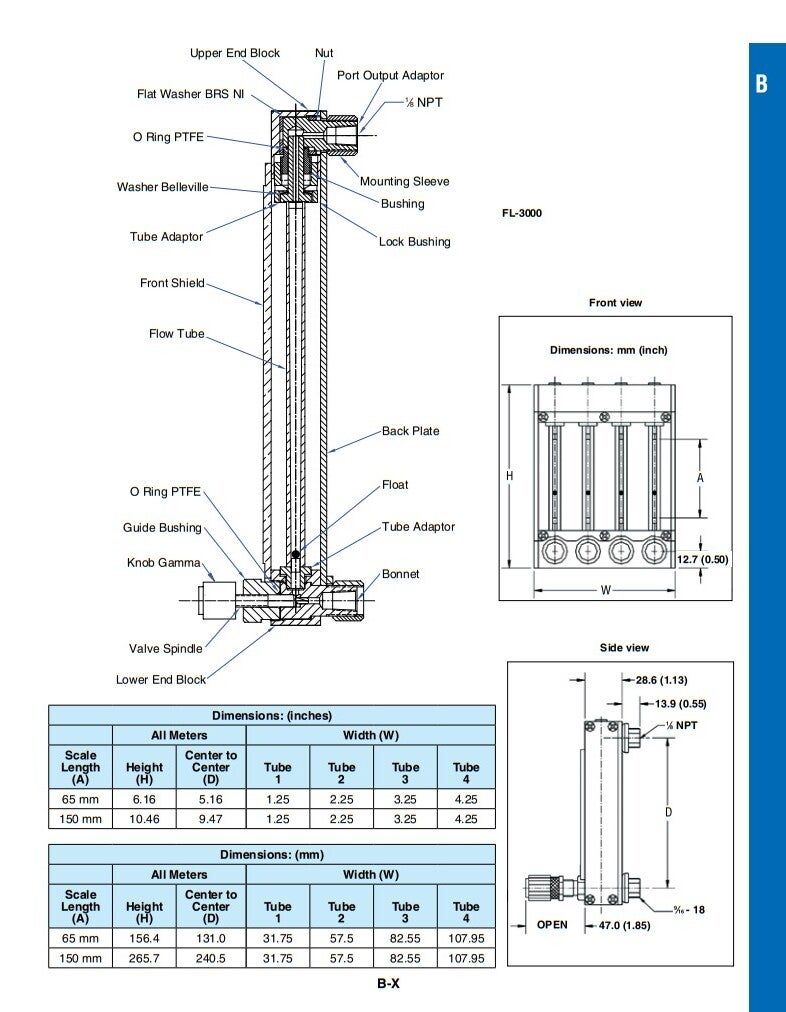

Height/Center to Center Port Distance: 150 mm (10.469"/9.469")
Add’l Info:

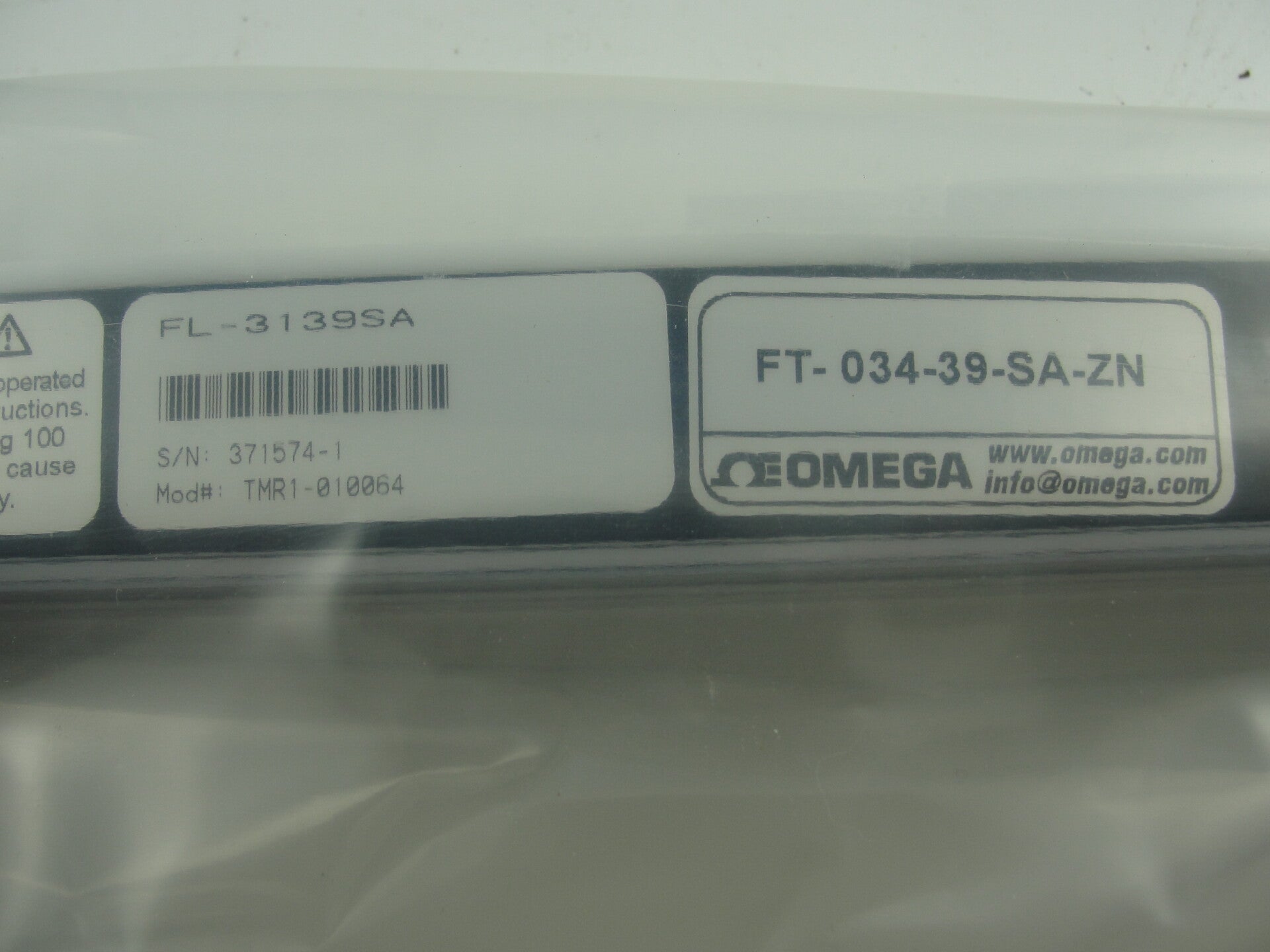

Model TMR1-010064
FT-034-39-SA-SN
New old stock, age unknown, spares from a test lab pilot line that has ended service.
